TT 200-CT24 Command Training System
- Complete lightweight two-way command training system with charger transport case
- Digital noise cancelling technology with full-duplex communication
- Wireless channel sync from transmitter to receivers
- Channel lock for reliability
- Programmable backlit high contrast OLED display
- Roll call, gathering and out-of-range alarm with vibration
- All day battery life
- Illuminated talk button on transmitter (latching or momentary PTT/PTM)
- Illuminated push-to-talk button on receiver
- Adjustable microphone gain and RF power
- Completely wireless so no installation is required
- Hearing Aid Compatible (HAC) for use with a (optional) TT-NL inductive neck loop
- Aux-in socket with audio priority

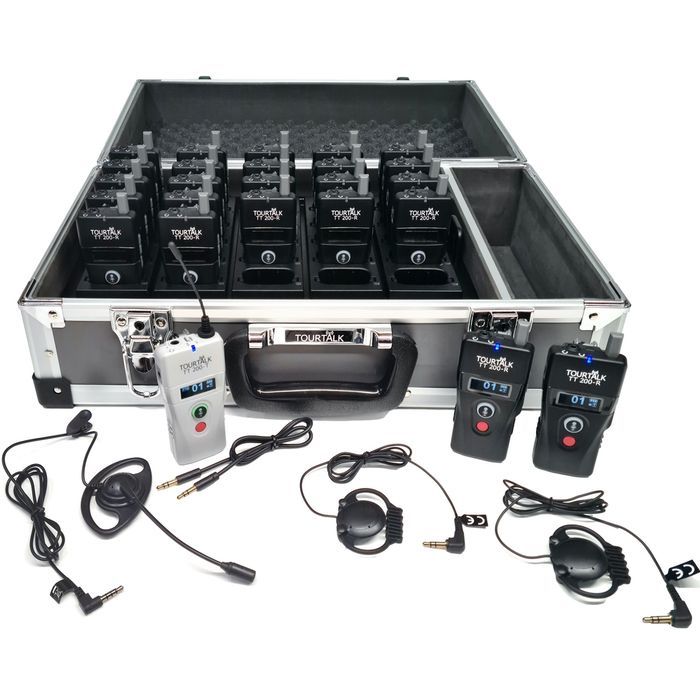

The Tourtalk TT 200-CT24 is a complete digital two-way command training communication system comprising 1 transmitter with single ear headset (for the trainer), 24 receivers with earphones (for the trainees) and a charger transport case.
A two-way command training system is a portable wireless audio system that is used to enable trainers to be clearly heard in a noisy environment or over distance.
The Tourtalk TT 200 is a full-duplex communication system that allows the trainer and trainees to fully communicate with each other. The system allows anyone to talk to and be heard by each other; making it more convenient for question and answer sessions or interviews during training.

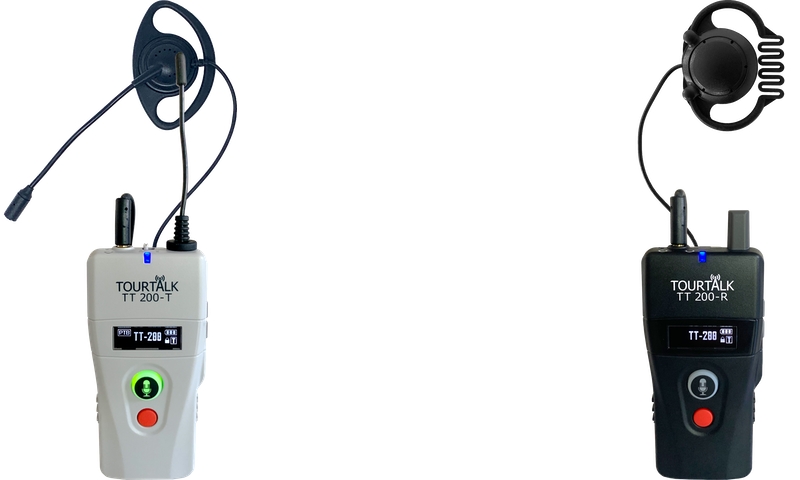

The Tourtalk TT 200-T transmitter is a compact, lightweight, simple to use unit enabling both one-way and two-way communication between the trainer and the trainees. The transmitter features an integrated microphone, headset socket (to connect the single ear headset) and microphone talk button. An aux-in socket to enable the connection of a smartphone is also provided.
The Tourtalk TT 200-R receiver features an integrated microphone, earphone/headphone/headset socket and talk back button to enable the user to speak back to the trainer and other trainees, when permitted.
Each person can then speak at a comfortable level without having to shout to each other and adjust their personal volume. They can even whisper if the training is in a noise sensitive area such as a public space.
Both the transmitter and receivers are supplied with a belt-clip and lanyard for hands-free use.
The charger transport case simultaneously recharges and stores up to 25 transmitters/receivers. Each charging dock has a battery status LED to indicate when the battery is fully charged. A control panel with LCD screen enables the channel of all docked units to be synced simultaneously within a few seconds, making it even easier and quicker to start a new group.
The charger’s hard case provides protection during transit and storage and is small enough to be carried as hand luggage for international travel. The detachable charger tray can either be used within the hard case or used as a desktop charger.
The Tourtalk system has been designed to be very user friendly and can be setup within minutes. As the system is completely wireless it can be operated indoors or outdoors and requires no installation.
This Tourtalk TT 200 command training system is ideal for on-the-job training, staff meetings, communication in commercial, industrial or retail sites and many more applications, even when social distancing.
A wide range of headsets and other accessories are available to suit any environment.
Custom packages can be supplied to suit any organisation’s requirements. Please contact us for details.
Delivery Includes
1 TT 200-T transmitter
1 TT-SEH headset
1 TT-AI aux-in lead
24 TT 200-R receiver
24 TT-SEP earphones
25 TT-LA lanyard
50 TT-RB1 rechargeable battery
1 TT-C25S charger transport case
Technical Data
TT 200-T Transmitter
Frequency range: 823-832MHz & 863-865MHz
Channels: 42
Transmission power: Hi 30mW Low 10mW
Transmission range: ≤ 150m (where local conditions allow)
Power supply: 2 x AA battery
Typical battery life: 18hrs/20hrs NiMh/Alkaline
Dimension: 46.5 x 33 x 96 mm (with belt clip but without antenna)
Weight: 113 g (with batteries)
TT 200-R Receiver
Frequency range: 823-832MHz & 863-865MHz
Channels: 42
Power supply: 2 x AA battery
Typical battery life: 20/22hrs NiMh/Alkaline
Dimension: 46.5 x 33 x 108 mm (with belt clip and antenna)
Weight: 113 g (with batteries)
TT-SEH Single ear headset
Impedance: 32 Ω
Cable: 1.04 m
Plug: 3.5 mm jack
Weight: 24g
TT-C25S Charger transport case
Power requirements: AC 100-240V, 50/60Hz
Power supply: 12V DC (5A)
Charging docks: 25 transmitters/receivers
Charging time: Approx. 9 hours for a 2600 mAh battery (depending on battery status)
Dimensions: 443mm x 298mm x 170mm
Weight: 5.2kg
Features and specifications subject to change without notice
