TT 200-CT5 Command Training System

  • Complete lightweight two-way command training system with charger transport case
  • Digital noise cancelling technology with full-duplex communication
  • No limit to the size of each group
  • Channel lock for reliability
  • Programmable backlit high contrast OLED display
  • Up to 150m range
  • All day battery life
  • Integrated microphone and headset socket
  • Illuminated talk button on transmitter (latching or momentary PTT/PTM)
  • Illuminated push-to-talk button on receiver
  • Adjustable microphone gain and RF power
  • Completely wireless so no installation is required
  • Aux-in socket with audio priority
  • Charger with back lit LCD control panel with channel sync
  • Power and charging status LEDs
  • Lightweight yet robust design
  • Software control for programming transmitters
  • Wide range of accessories available

The Tourtalk TT 200-CT5 is a complete digital two-way command training communication system comprising 5 transmitters with single ear headsets and a charger transport case.

A two-way command training system is a portable wireless audio system that is used to enable trainers to be clearly heard in a noisy environment or over distance.

The Tourtalk TT 200 is a wireless full-duplex communication system that allows trainers and trainees to fully communicate with each other. The system allows anyone to talk to and be heard by each other (as if on a telephone call); making it ideal for open discussion, instructions and question and answer sessions.

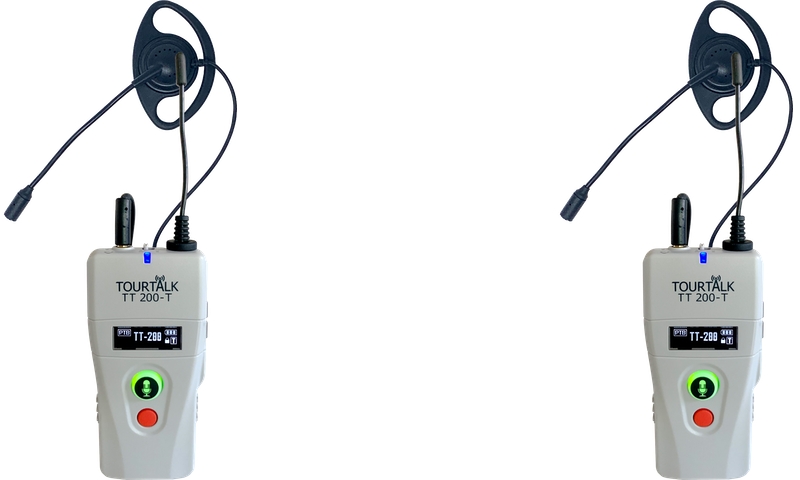

Tourtalk TT 200-T with TT-SEH

Each transmitter features an integrated microphone, headset socket (to connect the single ear headset) and microphone talk button. An aux-in socket to enable the connection of a smartphone is also provided.

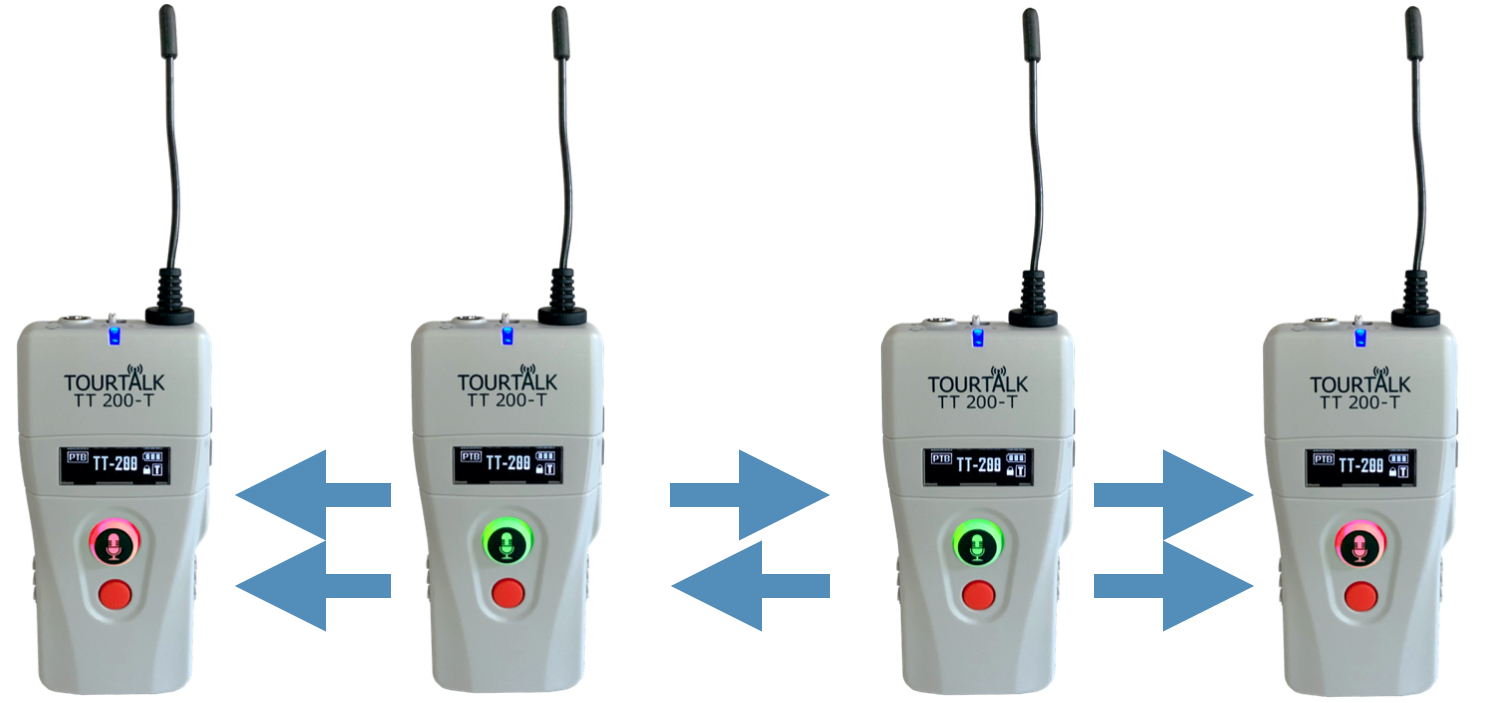

Tourtalk TT 200-T two-way system example

Each person can then speak at a comfortable level without having to shout to each other and adjust their personal volume. They can even whisper if the training is in a noise sensitive area such as a public space.

The transmitters are supplied complete with belt clips and lanyards for hands-free operation.

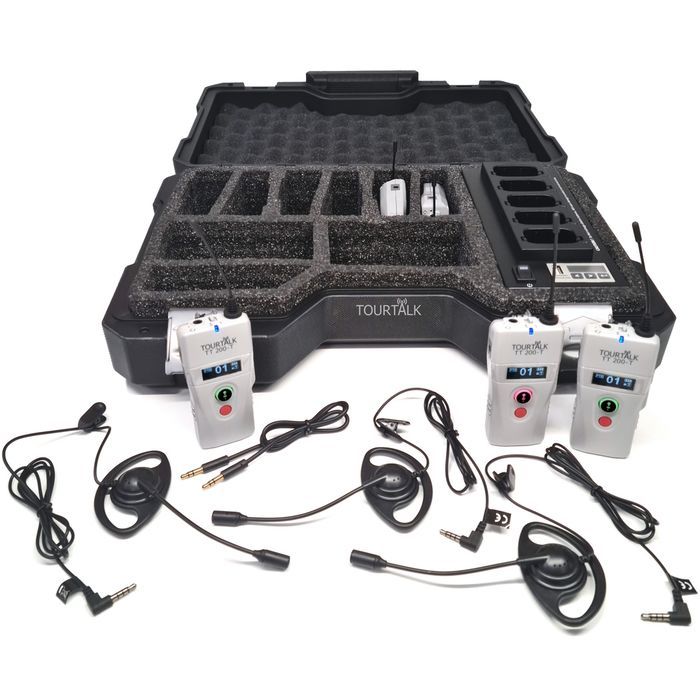

The charger transport case simultaneously recharges and stores up to 5 transmitters. Each charging dock has a battery status LED to indicate when the battery is fully charged. A control panel with LCD screen enables the channel of all docked units to be synced simultaneously within a few seconds, making it even easier and quicker to start a new group.
The charger’s hard case provides protection during transit and storage and is small enough to be carried as hand luggage for international travel.

The Tourtalk system has been designed to be very user friendly and can be setup within minutes. As the system is completely wireless it can be operated indoors or outdoors and requires no installation.

The system can be used as one group or broken down into smaller groups simply by changing the channel on each transmitter.

This Tourtalk TT 200 command training system is ideal for sports or on-the-job training, staff meetings, communication in commercial, industrial or retail sites and many more applications, even when social distancing.

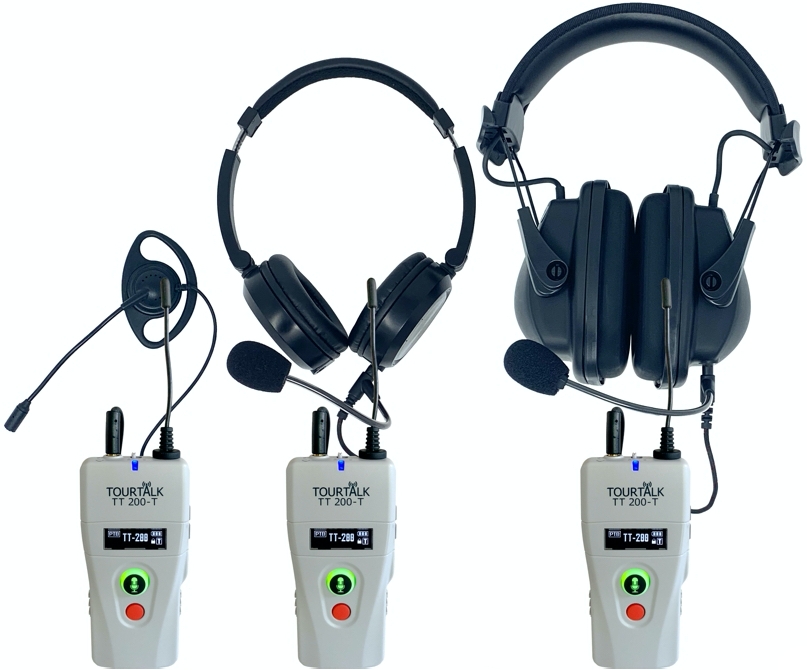

Tourtalk TT 200-T headsets example

A wide range of headsets and other accessories are available to suit any environment.

Custom packages can be supplied to suit any organisation’s requirements. Please contact us for details.

Delivery Includes

5 TT 200-T transmitter
5 TT-SEH headset
5 TT-AI aux-in lead
5 TT-LA lanyard
10 TT-RB1 rechargeable battery
1 TT-C5SC charger transport case

Technical Data

TT 200-T Transmitter
Frequency range: 823-832MHz & 863-865MHz
Channels: 42
Transmission power: Hi 30mW Low 10mW
Transmission range: ≤ 150m (line of sight)
Power supply: 2 x AA battery
Typical battery life: 18hrs/20hrs NiMh/Alkaline
Dimension: 46.5 x 33 x 96 mm (with belt clip but without antenna)
Weight: 113 g (with batteries)
TT 200-R Receiver
Frequency range: 823-832MHz & 863-865MHz
Channels: 42
Power supply: 2 x AA battery
Typical battery life: 20/22hrs NiMh/Alkaline
Dimension: 46.5 x 33 x 108 mm (with belt clip and antenna)
Weight: 113 g (with batteries)
TT-SEH Single ear headset
Impedance: 32 Ω
Cable: 1.04 m
Plug: 3.5 mm jack
Weight: 24g
TT-C5SC Charger transport case
Power requirements: AC 100-240v, 50/60Hz
Power supply: 12v DC (1.6A)
Charging docks: 5 transmitters/receivers
Charging time: Approx. 9 hours for a 2600 mAh battery (depending on battery status)
Dimensions: 420mm x 310mm x 111mm
Weight: 2.5kg
