TT 100-ADC14M Audio Description System

  • Complete lightweight audio description system with charger transport case
  • Quick charging batteries for transmitters and receivers
  • Integrated microphone, microphone socket and an aux-in socket on transmitter
  • Microphone mute switch with status LED
  • Transmitter supplied with lapel microphone and aux-in lead
  • Headband microphone for the describer
  • Receivers supplied with single earphones
  • Wireless channel sync from transmitter to receivers
  • 100 Selectable licence-free channels
  • Lockable channel feature for reliability
  • Single AA battery operation
  • Clear LCD with battery status, presenter mode and channel number

The Tourtalk TT 100-ADC14M is a digital audio description system comprising 1 transmitter with headband microphone (for the describer), 14 receivers with earphones (for the listeners) and a charger transport case.

An audio description system is used to describe an event to individuals (often blind or partially sighted). The system is perfect for the performing arts such as theatre or dance or at sporting events. The system can also be used for silent conferences or as a radio aid system to assist people that are hard-of-hearing.

The transmitter features an integrated microphone, microphone socket (to connect the headband microphone), and microphone mute switch. An aux-in socket to enable the connection of a smartphone is also provided.

The describer can whisper into the sensitive headband microphone so not to disturb people in the vicinity. The describer can add additional commentary of the production e.g. describing body language, expressions and movements. This gives the system users more information about the things they might not be able to see, enabling them to visualise the scene and keep up with the action.

The listeners wear the single earphones (leaving the other ear exposed so they can hear the dialogue/music/atmosphere), and simply adjust their volume to a comfortable level. The Tourtalk system can be used very discreetly without disturbing the surrounding seats.

Both the transmitter and receivers have been designed to be very easy to use. Each unit features a channel lock function, which stops the user accidentally changing the channel, and a lanyard so the user doesn’t have to constantly hold it during an event.

The charger transport case simultaneously recharges and stores up to 15 Tourtalk transmitter/receivers. The hard case provides protection during transit and storage, and is small enough to be carried as hand luggage for international travel. The detachable charger tray can either be used within the hard case or used as a desktop charger.

As the system is completely wireless, it can be operated indoors or outdoors and requires no installation.

A wide range of accessories are available.

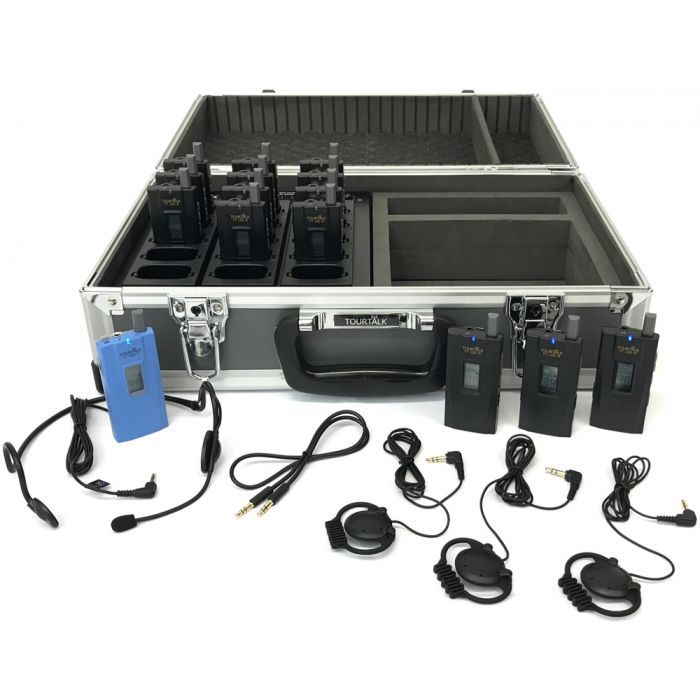

Delivery Includes

1 TT 100-T transmitter
1 TT-HM headband microphone
1 TT-LM lapel microphone
1 TT-AI aux-in lead
14 TT 100-R receivers
14 TT-SEP earphones
15 TT-RB1 rechargeable batteries
15 TT-LA lanyards
1 TT-C15 charger transport case

Technical Data

TT 100-T Transmitter
Frequency range: 2.4 GHz
Channels: 100
Transmission power: ≤10mW
Transmission range: ≤ 30m (line of sight)
Power supply: 1 x AA battery
Typical battery life: 10/11hrs NiMh/Alkaline
Dimension (mm): 24 x 41 x 102
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT 100-R Receiver
Frequency range: 2.4 GHz
Channels: 100
Power supply: 1 x AA battery
Typical battery life: 10/11hrs NiMh/Alkaline
Dimension (mm): 24 x 41 x 102
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT C-15 Charger transport case
Power requirements: AC 100-240V, 50/60Hz
Power supply: 12V DC (5A)
Charging docks: 15 transmitters/receivers
Charging current per unit: 430mA max.
Charging time: Approx. 9 hours for a 2600 mAh battery (depending on battery status)
Dimensions: 443mm x 288mm x 174mm
Weight: 4.6kg
Operating temperature: 0 – 40 °C
