TT 40-ADC14MH Audio Description System

  • Integrated microphone, microphone socket and an aux-in socket on transmitter
  • Microphone mute switch with status LED
    Up to 120m range
  • Channel/group lock for reliable operation
  • Transmitter supplied with lapel microphone and aux-in lead
  • Headband microphone for the describer
  • Receivers supplied with lightweight headphones
  • Licence-free use within Europe
  • Clear LCD with battery status and channel/group number
  • Lightweight yet durable design

The Tourtalk TT 40-ADC14MH is an audio description system comprising 1 transmitter with headband microphone (for the describer), 14 receivers with headphones (for the listeners) and a charger transport case.

Tourtalk TT 40-ADC14MH audio description system

An audio description system is used to describe an event to individuals (often blind or partially sighted). The system is perfect for the performing arts such as theatre or dance or at sporting events. The system can also be used for silent conferences or as a radio aid system to assist people that are hard-of-hearing.

The transmitter features an integrated microphone, microphone socket (to connect the headband microphone), and microphone mute switch. An aux-in socket to enable the connection of a smartphone is also provided.

The describer can whisper into the sensitive headband microphone so not to disturb people in the vicinity. The describer can add additional commentary of the production e.g. describing body language, expressions and movements. This gives the system users more information about the things they might not be able to see, enabling them to visualise the scene and keep up with the action.

The listeners wear headphones connected to the receivers and simply adjust their own volume to a comfortable level. The Tourtalk system can be used very discreetly without disturbing the surrounding seats.

Both the transmitter and receivers have been designed to be very easy to use. Each unit features a channel lock function, which stops the user accidentally changing the channel, and a lanyard so the user doesn’t have to constantly hold it during an event.

The charger transport case simultaneously recharges and stores up to 15 Tourtalk transmitter/receivers. The hard case provides protection during transit and storage, and is small enough to be carried as hand luggage for international travel. The detachable charger tray can either be used within the hard case or used as a desktop charger.

As the system is completely wireless, it can be operated indoors or outdoors and requires no installation.

A wide range of accessories are available.

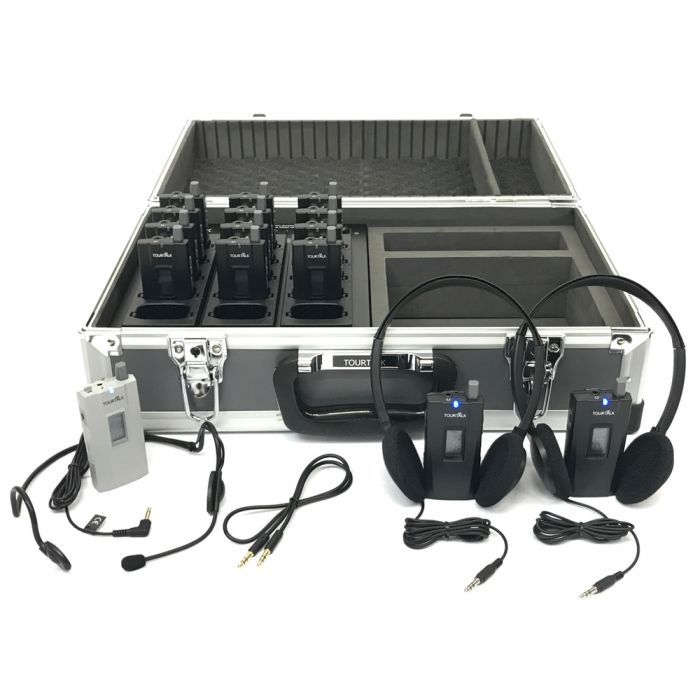

Delivery Includes

1 TT 40-T transmitter
1 TT-HM headband microphone
1 TT-LM lapel microphone
1 TT-AI aux-in lead
14 TT 40-R receivers
14 TT-SEP earphones
14 TT-HP lightweight headphones
15 TT-RB1 rechargeable batteries
15 TT-LA lanyards
1 TT-C15 charger transport case

Technical Data

TT 40-T Transmitter
Frequency range: 863-865MHz
Channels: 40
Transmission power: ≤ 10 mW
Transmission range: ≤ 120m (line of sight)
Power supply: 1 x AA battery
Typical battery life: 9hrs NiMh
Dimension: 24.4mm x 40.5mm x 97.2mm
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT 40-R Receiver
Frequency range: 863-865MHz
Channels: 40
Power supply: 1 x AA battery
Typical battery life: 12hrs NiMh
Dimension (mm): 24.4mm x 40.5mm x 97.2mm
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT C-15 Charger transport case
Power requirements: AC 100-240V, 50/60Hz
Power supply: 12V DC (5A)
Charging docks: 15 transmitters/receivers
Charging current per unit: 430mA max.
Charging time: Approx. 9 hours for a 2600 mAh battery (depending on battery status)
Dimensions: 443mm x 288mm x 174mm
Weight: 4.6kg
Operating temperature: 0 – 40 °C
