TT 40-HSC14N Hearing Support System

  • Integrated microphone, microphone socket and an aux-in socket on transmitter
  • Microphone mute switch with status LED
  • Channel/group lock for reliable operation
  • Transmitter supplied with lapel microphone and aux-in lead
  • Receivers supplied with single earphones and inductive neck loops
  • Licence-free use within Europe
  • Clear LCD with battery status and channel/group number

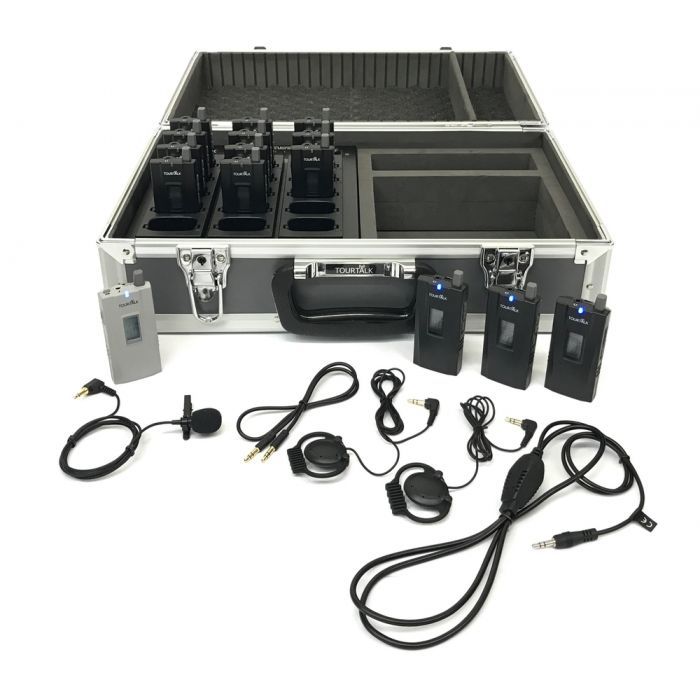

The Tourtalk TT 40-HSC14N is a hearing system comprising 1 transmitter with lapel microphone (for the presenter), 14 receivers with earphones and neck loops (for the hard of hearing listeners) and a charger transport case.

This portable and wireless hearing system is designed to aid communication with hard of hearing people in noisy environments or over distance.

The transmitter features an integrated microphone, microphone socket (to connect the lapel microphone), and microphone mute switch. An aux-in socket to enable the connection of a smartphone is also provided.

The presenter wears a lapel microphone connected to the Tourtalk transmitter. They can then speak at a comfortable level without having to raise their voice.

The hard of hearing people wear a discreet receiver with either an inductive neck loop (to work in conjunction with their hearing aid on the ‘T’ setting) or the supplied earphone. They can then listen to the presenter and adjust their personal volume to a comfortable level.

The transmitter and receivers are supplied complete with belt clips and lanyards for hands-free operation.

The charger transport case simultaneously recharges and stores up to 15 Tourtalk transmitter/receivers. The hard case provides protection during transit and storage, and is small enough to be carried as hand luggage for international travel. The detachable charger tray can either be used within the hard case or used as a desktop charger.

The Tourtalk hearing system has been designed to be very user friendly and can be setup within minutes. As the system is completely wireless, it can be operated indoors or outdoors and requires no installation.

This Tourtalk TT 40 system can also be used for workplace staff training, guided tours or audio description (to assist blind or partially sighted people).

A wide range of accessories are available.

Delivery Includes

1 TT 40-T transmitter
1 TT-LM lapel microphone
1 TT-AI aux-in lead
14 TT 40-R receivers
14 TT-SEP earphones
14 TT-NL inductive neck loops
15 TT-RB1 rechargeable batteries
15 TT-LA lanyards
1 TT-C15 charger transport case

Technical Data

TT 40-T Transmitter
Frequency range: 863-865MHz
Channels: 40
Transmission power: ≤ 10 mW
Transmission range: ≤ 120m (where local conditions allow)
Power supply: 1 x AA battery
Typical battery life: 10hrs Alkaline
Dimension: 24.4mm x 40.5mm x 97.2mm
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT 40-R Receiver
Frequency range: 863-865MHz
Channels: 40
Power supply: 1 x AA battery
Typical battery life: 15hrs Alkaline
Dimension (mm): 24.4mm x 40.5mm x 97.2mm
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT C-15 Charger transport case
Power requirements: AC 100-240V, 50/60Hz
Power supply: 12V DC (5A)
Charging docks: 15 transmitters/receivers
Charging current per unit: 430mA max.
Charging time: Approx. 9 hours for a 2600 mAh battery (depending on battery status)
Dimensions: 443mm x 288mm x 174mm
Weight: 4.6kg
Operating temperature: 0 – 40 °C

Features and specifications subject to change without notice
