TT 200-TG24 Tour Guide System

  • Complete lightweight two-way tour guide system with charger transport case
  • Digital noise cancelling technology with full-duplex communication
  • Wireless channel sync from transmitter to receivers
  • Channel lock for reliability
  • Programmable backlit high contrast OLED display
  • Roll call, gathering and out-of-range alarm with vibration
  • Up to 150m range
  • All day battery life
  • Illuminated talk button on transmitter (latching or momentary PTT/PTM)
  • Illuminated push-to-talk button on receiver
  • Adjustable microphone gain and RF power
  • Completely wireless so no installation is required
  • Hearing Aid Compatible (HAC) for use with a (optional) TT-NL inductive neck loop
  • Aux-in socket with audio priority

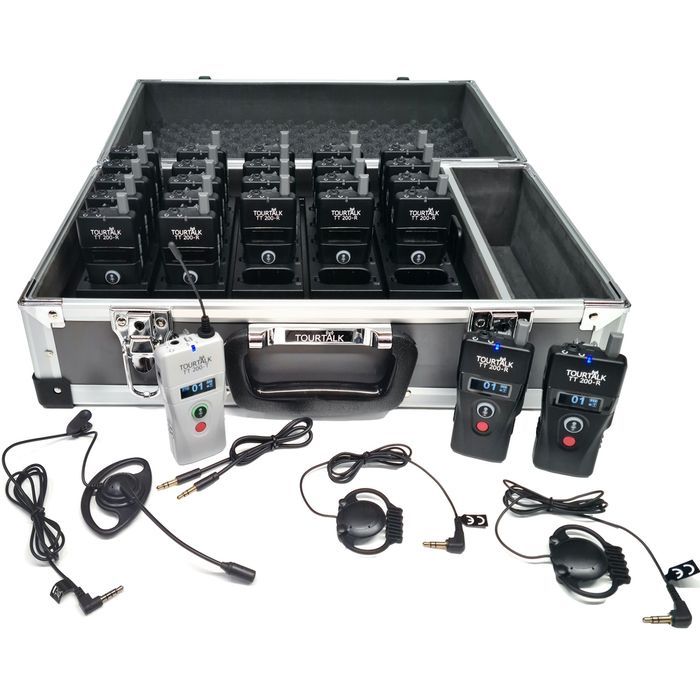

The Tourtalk TT 200-TG24 is a complete digital two-way tour guide system comprising 1 transmitter with single ear headset (for the tour guide), 24 receivers with earphones (for the audience) and a charger transport case.

A two-way tour guide system is a portable wireless audio system that is used to enable a tour group to be clearly heard in a noisy environment or over distance.

The Tourtalk TT 200 is a full-duplex tour guide system that allows the tour guide and group members to fully communicate with each other during a tour. The system allows the tour group to talk to and be heard by each other; making it more convenient for visitor tours with question and answer sessions or interviews, meetings on the shop floor, staff training and many other applications.

Tourtalk TT 200-T with TT-SEH and TT 200-R with TT-SEP

The Tourtalk TT 200-T transmitter is a compact, lightweight, simple to use unit enabling both one-way and two-way communication between the tour guide and the tour group. The transmitter features an integrated microphone, headset socket (to connect the single ear headset) and microphone talk button. An aux-in socket to enable the connection of a smartphone is also provided.

The Tourtalk TT 200-R receiver features an integrated microphone, earphone/headphone/headset socket and talk back button to enable the user to speak back to the tour guide and tour group, when permitted.

Tourtalk TT 200-T and TT 200-R two-way system example

Each person can then speak at a comfortable level without having to shout to each other and adjust their personal volume. They can even whisper if the tour is in a noise sensitive area e.g. Museum or gallery.

Both the transmitter and receivers are supplied with a belt-clip and lanyard for hands-free use.

The charger transport case simultaneously recharges and stores up to 25 transmitters/receivers. Each charging dock has a battery status LED to indicate when the battery is fully charged. A control panel with LCD screen enables the channel of all docked units to be synced simultaneously within a few seconds, making it even easier and quicker to start a new tour.

The charger’s hard case provides protection during transit and storage and is small enough to be carried as hand luggage for international travel. The detachable charger tray can either be used within the hard case or used as a desktop charger.

The Tourtalk tour guide system has been designed to be very user friendly and can be setup within minutes. As the system is completely wireless it can be operated indoors or outdoors and requires no installation.

This Tourtalk TT 200 tour guide system is ideal for guided tours, job/sports training, staff meetings and many more applications, even when social distancing.

A wide range of headsets and other accessories are available to suit any environment.

Tourtalk TT 200-T and TT 200-R headsets example

Custom packages can be supplied to suit any organisation’s requirements. Please contact us for details.

Delivery Includes

1 TT 200-T transmitter
1 TT-SEH headset
1 TT-AI aux-in lead
24 TT 200-R receiver
24 TT-SEP earphones
25 TT-LA lanyard
50 TT-RB1 rechargeable battery
1 TT-C25S charger transport case

Technical Data

TT 200-T Transmitter
Frequency range: 823-832MHz & 863-865MHz
Channels: 42
Transmission power: Hi 30mW Low 10mW
Transmission range: ≤ 150m (line of sight)
Power supply: 2 x AA battery
Typical battery life: 18hrs/20hrs NiMh/Alkaline
Dimension: 46.5 x 33 x 96 mm (with belt clip but without antenna)
Weight: 113 g (with batteries)
TT 200-R Receiver
Frequency range: 823-832MHz & 863-865MHz
Channels: 42
Power supply: 2 x AA battery
Typical battery life: 20/22hrs NiMh/Alkaline
Dimension: 46.5 x 33 x 108 mm (with belt clip and antenna)
Weight: 113 g (with batteries)
TT-SEH Single ear headset
Impedance: 32 Ω
Cable: 1.04 m
Plug: 3.5 mm jack
Weight: 24g
TT-C25S Charger transport case
Power requirements: AC 100-240V, 50/60Hz
Power supply: 12V DC (5A)
Charging docks: 25 transmitters/receivers
Charging time: Approx. 9 hours for a 2600 mAh battery (depending on battery status)
Dimensions: 443mm x 298mm x 170mm
Weight: 5.2kg
