TT 100-CT23MH Command Training System

  • Dual presenter mode
  • Complete lightweight command training system with charger transport case
  • Quick charging batteries for transmitters and receivers
  • Integrated microphone, microphone socket and an aux-in socket on transmitter
  • Microphone mute switch with status LED
  • Transmitter supplied with lapel microphone and aux-in lead
  • Headband microphone for the trainer
  • Receivers supplied with headphones
  • Wireless channel sync from transmitter to receivers
  • 100 Selectable licence-free channels
  • Lockable channel feature for reliability
  • Single AA battery operation
  • Clear LCD with battery status, presenter mode and channel number

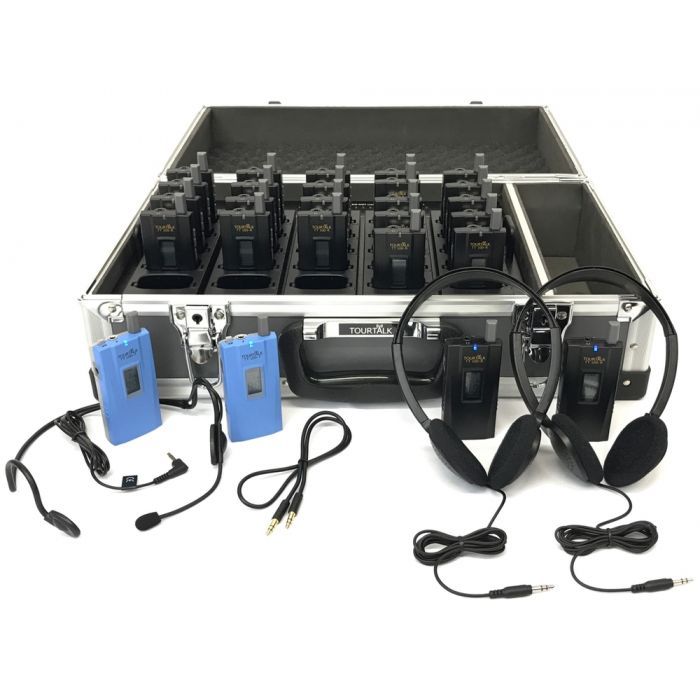

The Tourtalk TT 100-CT23MH is a digital command training system comprising 2 transmitters with headband microphones (for the trainers), 23 receivers with headphones (for the listeners) and a charger transport case.

A command training system is a portable wireless audio system that is used to enable trainers to be heard clearly in noisy environments or over distance. The TT 100 system allows up to two presenters (in dual presenter mode) to communicate simultaneously to the same group.

Alternatively, the trainer can use one transmitter, and pass the other transmitter for question and answer sessions or interviews (using its integrated microphone), ensuring everybody hears what is said.

The transmitter features an integrated microphone, microphone socket (to connect the headband microphone), and microphone mute switch. An aux-in socket to enable the connection of a smartphone is also provided.

The trainer can then speak at a comfortable level without having to raise their voice. They can even whisper if they are in a noise sensitive area e.g. near wildlife or in an art gallery.

The listeners wear headphones (connected to the receivers) and simply adjust their own volume to a comfortable level.

Both the transmitter and receivers are supplied complete with belt clips and lanyards for hands-free operation.

The charger transport case simultaneously recharges and stores up to 25 Tourtalk transmitter/receivers. The hard case provides protection during transit and storage, and is small enough to be carried as hand luggage for international travel. The detachable charger tray can either be used within the hard case or used as a desktop charger.

The Tourtalk command training system has been designed to be very user friendly and can be setup within minutes. As the system is completely wireless it can be operated indoors or outdoors and requires no installation.

This Tourtalk TT 100 command training system is ideal for workplace staff training, equestrian and sports training, quad safari/Segway tours, stunt kite display teams and many more applications.

A wide range of accessories are available.

Delivery Includes

2 TT 100-T transmitter
2 TT-HM headband microphone
2 TT-LM lapel microphone
2 TT-AI aux-in lead
23 TT 100-R receivers
23 TT-SEP earphones
23 TT-HP lightweight headphones
25 TT-RB1 rechargeable batteries
25 TT-LA lanyards
1 TT-C25 charger transport case

Technical Data

TT 100-T Transmitter
Frequency range: 2.4 GHz
Channels: 100
Transmission power: ≤10mW
Transmission range: ≤ 30m (line of sight)
Power supply: 1 x AA battery
Typical battery life: 10/11hrs NiMh/Alkaline
Dimension (mm): 24 x 41 x 102
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT 100-R Receiver
Frequency range: 2.4 GHz
Channels: 100
Power supply: 1 x AA battery
Typical battery life: 10/11hrs NiMh/Alkaline
Dimension (mm): 24 x 41 x 102
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT C-25 Charger transport case
Power requirements: AC 100-240V, 50/60Hz
Power supply: 12V DC (5A)
Charging docks: 25 transmitters/receivers
Charging current per unit: 430mA max.
Charging time: Approx. 9 hours for a 2500 mAh battery (depending on battery status)
Dimensions: 443mm x 288mm x 174mm
Weight: 5.2kg
Operating temperature: 0 – 40 °C

Features and specifications subject to change without notice
