TT 21-SI44T2M Interpretation System

  • Complete lightweight 44 delegate language interpretation system with charger transport case
  • Dual presenter mode
  • Ideal for bilingual meetings
  • Licence-free channels
  • Hands-free microphone for the interpreter
  • Microphone mute switch with status LED
  • Cable-free single earphone receivers
  • Quick and easy to distribute, collect and sanitise between meetings
  • Secure and reliable digital transmission
  • Wireless channel sync from transmitter to receivers
  • Delegate channel lock for reliability
  • Removeable charger trays for desktop use
  • Neat and orderly storage
  • Completely wireless so no installation is required
  • Retractable handle and wheels for easy transportation
  • All day battery life

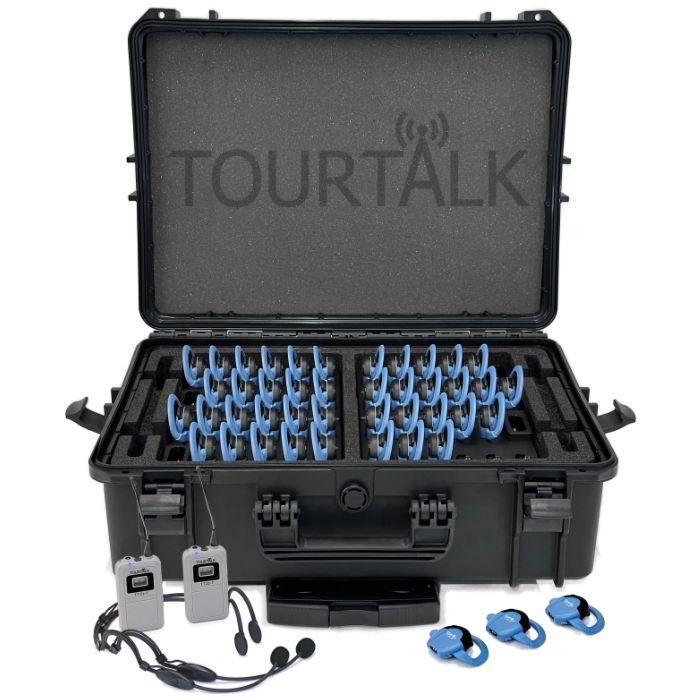

The Tourtalk TT 21-SI44T2M is a complete digital language interpretation system comprising 2 transmitters with headband microphones (for the interpreters), 44 earphone receivers (for the delegates) and a charger transport case.

The compact transmitter features an input socket, a ‘cough’ mute switch with status LED, and LCD screen that displays the channel and battery status. The transmitter can either be recharged in the supplied charger case or via a USB-C port. The transmitter can be used during charging, if required.

The lightweight headband microphone is worn by the interpreter. This sensitive microphone enables the user to whisper their translated message and therefore the system doesn’t require a booth.

The single earphone receiver enables the delegates to hear the interpreter as well as the floor language presenters’ cadence and tone, enabling them to follow and understand the presentation.

The one-piece cable-free receiver design allows quicker distribution and collection, reducing the setup time between meetings. Untangling cables are a thing of the past!

The lightweight single earphone can be used on the left or right ear for long durations without user fatigue.

The system enables up to two interpreters to communicate to the delegates with a transmission range of up to sixty-five meters. This can be particularly useful for long events as the two interpreters can each have a transmitter, and alternate the interpretation, by muting one transmitter at a time.

The system is ideal for student simultaneous interpreters as an experienced interpreter can also be issued with a transmitter. This enables the experienced interpreter to un-mute their microphone and seamlessly start translating should the trainee require assistance, ensuring the delegates receive the message uninterrupted.

Alternatively, the second transmitter can be changed to a different channel to provide interpretation in another language.

The entire system is wireless, so it does not require a base station. Therefore, the system can be used indoors or outdoors. The interpreter also has the freedom to move should they need to walk near the presenter to hear what is being said.

The charger transport case simultaneously recharges up to four transmitters and forty-four receivers.

The water and dust proof hard case provides protection during transit, featuring a retractable handle and wheels for easy transportation.

The detachable charger trays can either be used within the hard case or used as desktop chargers.

The Tourtalk language interpretation system has been designed to be very user friendly and can be setup within minutes of arriving at a venue.

Additional transmitters can be purchased for other interpreters, to enable multiple languages to be used simultaneously.

This Tourtalk TT 21 language interpretation system is ideal for international churches, conference centres, universities, tour companies or anywhere where simultaneous language interpretation is required.

A wide range of accessories are available.

Delivery Includes

2 TT 21-T transmitter
2 TT-HM headband microphone
44 TT 21-R receiver
46 TT-LA lanyard
1 TT-C24-2 charger transport case

Technical Data

TT 21-T tour guide transmitter

Frequency range: 823-832MHz & 863-865MHz
Channels: 42
Transmission power: 10mW
Transmission range: <65m (where local conditions allow)
Battery type: lithium-ion polymer (integrated)
Typical battery life: <28hrs
Dimensions: 81 x 43 x 16mm
(excluding antenna)
Weight: 52.1g
Operating temperature: 0°C – +40°C

TT-HM headband microphone


Frequency range: 100Hz - 15,000 Hz
Impedance: 2.2KΩ ± 30%(at 1,000 Hz)
Power supply: 3V DC current
Ambient temp.:0-40 °C
Weight: 30 g
Connector: 3.5 mm gold plated jack plug

TT 21-R tour guide receiver


Frequency range: 823-832MHz & 863-865MHz
Channels: 42
Battery type: lithium-ion polymer (integrated)
Typical battery life: <12hrs
Dimensions: 70 x 55 x 25mm
Weight: 21.4g
Operating temperature: 0°C – +40°C

TT-C24-2 charger transport case

Power requirements: AC 100-240v, 50/60Hz

Mains power outlets required: 2
Power supply: 5v4A DC
Charger trays: 2
Charging docks: 48 Total 4 TT 21-T transmitters & 44 TT 21-R receivers
2 TT 21-T transmitters & 22 TT 21-R receivers per tray
Charging time: TT 21-T transmitter < 3hrs TT 21-R receivers < 2hrs
Dimensions case: approx. 55 x 45.5 x 23.5cm desktop charger approx. 31 x 19.5 x 5.3cm
Weight: 8.35kg case with charger trays and PSUs
Operating temperature: 10 – 30 °C

Features and specifications subject to change without notice
